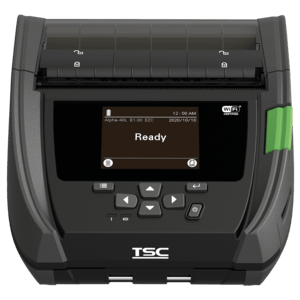

TSC Alpha-40L

The TSC Alpha-40L is a rugged and high-performance mobile direct thermal printer designed for retail, industrial and warehouse environments where mobility, durability and connectivity are essential. Built to support demanding field operations, the Alpha-40L delivers reliable on-the-go barcode and label printing for logistics, shelf labelling, picking and delivery applications.

With a print resolution of 8 dots/mm (203 dpi), the Alpha-40L produces clear text and sharp barcodes suitable for shipping labels, warehouse tags and retail labelling. Supporting a maximum media width of 112 mm and a maximum print width of 104 mm, it accommodates larger label formats than standard mobile printers, making it ideal for warehouse and logistics operations.

Operating at speeds up to 127 mm/s, the printer ensures efficient mobile printing without compromising battery performance. A maximum roll diameter of 67 mm allows longer print runs between media changes while maintaining portability.

Advanced Mobile Features

The integrated LCD display enables quick configuration and real-time status monitoring directly from the device. A built-in real-time clock (RTC) supports time-stamped labelling and traceability.

The Alpha-40L includes a built-in peeler, allowing immediate label application for faster workflow in picking and dispatch environments.

With 128 MB RAM and 128 MB Flash memory, the printer supports complex label formats and enterprise-level applications.

Connectivity & Expansion

Designed for modern mobile environments, the TSC Alpha-40L offers comprehensive connectivity options:

• USB-C

• Bluetooth

• Wi-Fi (802.11ac)

• NFC

• Micro SD Slot

This ensures seamless pairing with mobile computers, tablets and warehouse systems, supporting both wired and wireless deployment.

Included in the Box

• Power supply unit

• EU power cable

• Extended battery

• Belt clip

• Quick Start Guide (QSG)

Technical Specifications

• Printer Type: Mobile Printer

• Print Technology: Direct Thermal

• Resolution: 203 dpi (8 dots/mm)

• Max. Media Width: 112 mm

• Max. Print Width: 104 mm

• Max. Roll Diameter: 67 mm

• Max. Print Speed: 127 mm/s

• Display: LCD Display

• Peeler: Integrated

• Real-Time Clock: Yes

• Interfaces: USB-C, Bluetooth, Wi-Fi (802.11ac), NFC

• Memory: 128 MB RAM, 128 MB Flash

• Expansion: Micro SD Slot

The TSC Alpha-40L is an ideal mobile printing solution for businesses requiring durable, wireless and high-capacity label printing in retail, warehouse and industrial field environments.
